Cisco
Cisco 5G-ANTM-O-4-B Multi-element, 9-in-1, LTE/Wi-Fi/GNSS antenna Factory Sealed
Cisco 5G-ANTM-O-4-B Multi-element, 9-in-1, LTE/Wi-Fi/GNSS antenna Factory Sealed
Regular price
$450.00
Regular price
Sale price
$450.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Functionality Description F6 Like New
| Condition Description C9 New Open Box
|
New, Unused equipment in original packaging where factory seals have been broken or do not exist.
Shipping
- Ships within 1–2 business days.
- Free standard shipping to the continental U.S.
- Phones & most tablets: Free 2-Day shipping.
- Laptops: 2-Day available for $40.
- Overnight shipping may be available; contact us before purchase.
- Tracking provided when the label is created.
- Shipping addresses cannot be changed after checkout.
Local Pickup Policy
- Local pickup is available ONLY when “Local Pickup” is selected at checkout.
- Pickup confirmation code MUST be presented — orders cannot be released without it.
- Orders marked for SHIPPING cannot be picked up.
- Orders marked for PICKUP cannot be shipped.
- Fulfillment method cannot be changed after checkout.
- If the wrong option is selected, the order must be cancelled and repurchased correctly.
Returns (30 Days)
- Returns accepted within 30 days of delivery.
- All returns must be approved by CDR Global before shipment.
- Returned items must be received within the 30-day window to qualify.
- Buyer-remorse returns accepted (wrong item/changed mind).
- Shipping-related damage must be reported within 72 hours of delivery.
Limitations
- No returns for altered or physically damaged items (excluding verified shipping damage).
- No returns for items shipped outside the 48 U.S. states.
- Refunds are issued to the original payment method only.
Warranty (Refurbished Products)
- This product includes a 30-Day Limited Warranty from the date of delivery.
- Covers functional hardware defects occurring during normal use.
- Does NOT cover accidental damage, liquid damage, misuse, unauthorized repairs, or cosmetic wear.
- Contact CDR Global for warranty support with order number and issue details.
- Warranty resolution may be repair, replacement, or store credit at CDR Global’s discretion.
Your satisfaction is extremely important to us — if something isn’t right, please reach out!
FEATURES
| Specification | Details |
|---|---|
| Cisco Part Number | 5G-ANTM-O-4-B (orderable as 5G-ANTM-O-4-B=) |
| Antenna Type | Multi-element, 9-in-1, omnidirectional, radome |

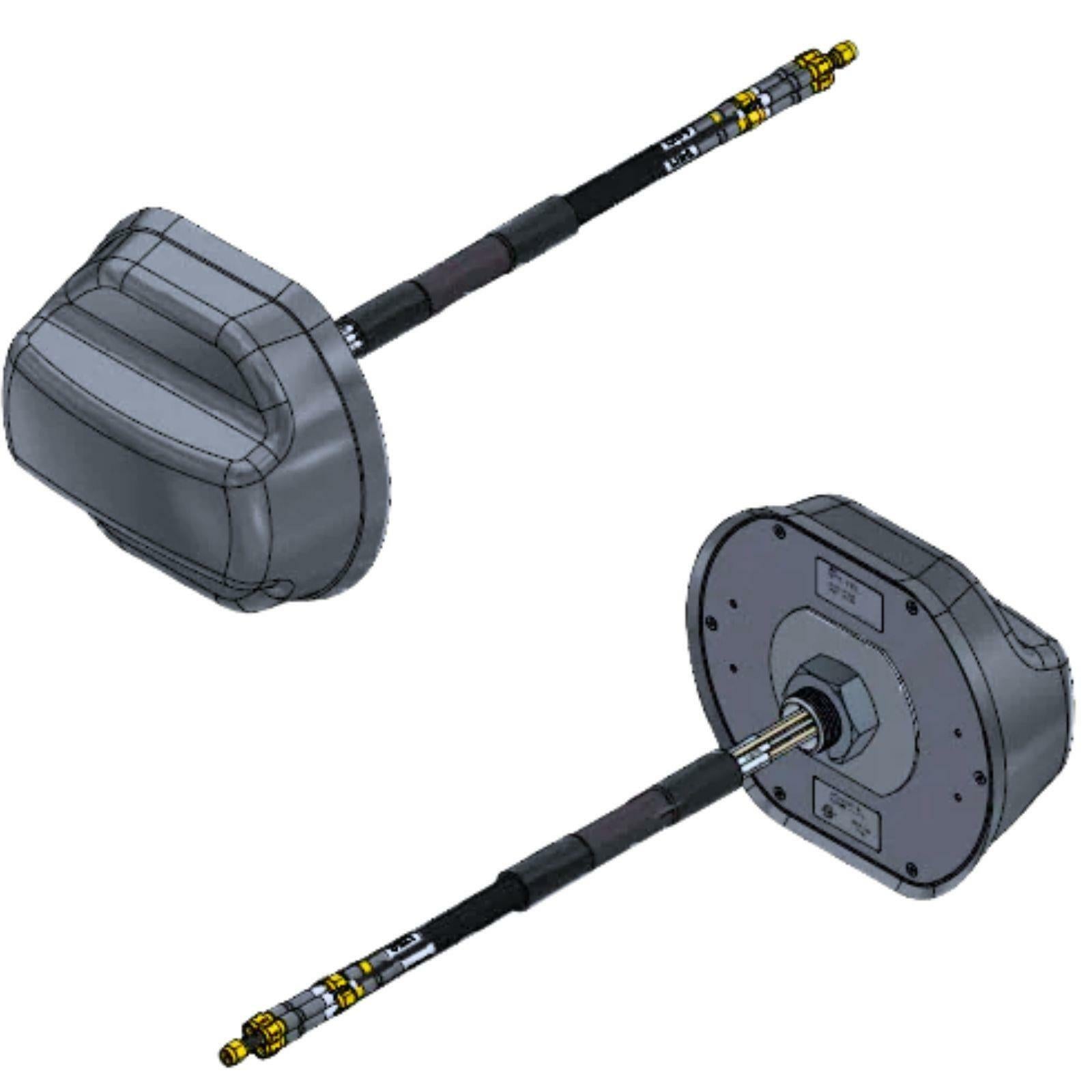

| Mounting Style | Vehicle mount / fixed infrastructure; stud mount |
| Deployment | Outdoor |
| Color | Black |
| Cellular Frequency Range | 617–960 MHz (low band, incl. Band 71) / 1710–2700 MHz / 3400–3900 MHz (5G Sub-6 GHz) |
| GNSS Frequency Range | 1.565–1.608 GHz (GPS L1/GNSS) |
| Wi-Fi Frequency Range | 2.4 GHz & 5 GHz dual-band |
| Cellular Gain (617–960 MHz) | Up to 3.8 dBi |
| Cellular Gain (1710–5925 MHz) | Up to 7.4 dBi |
| Wi-Fi Peak Gain | 8 dBi (2.4 GHz and 5 GHz) |
| GNSS Gain | 3 dBic / -2 dBic |
| VSWR | 2:1 |
| Antenna Polarization (GNSS) | Right Hand Circular (RHCP) |
| Cellular Connectors (×4) | SMA (Male) |
| Wi-Fi Connectors (×4) | RP-SMA (Male) |
| GNSS Connector (×1) | SMA (Male) |
| Total Connectors | 9 (4× SMA cellular + 4× RP-SMA Wi-Fi + 1× SMA GPS) |
| IP Rating | IP67 compliant (maximum protection against dust and water immersion) |
| Certifications | EN 50155:2007 (railway/transportation), AAR (Association of American Railroads) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |

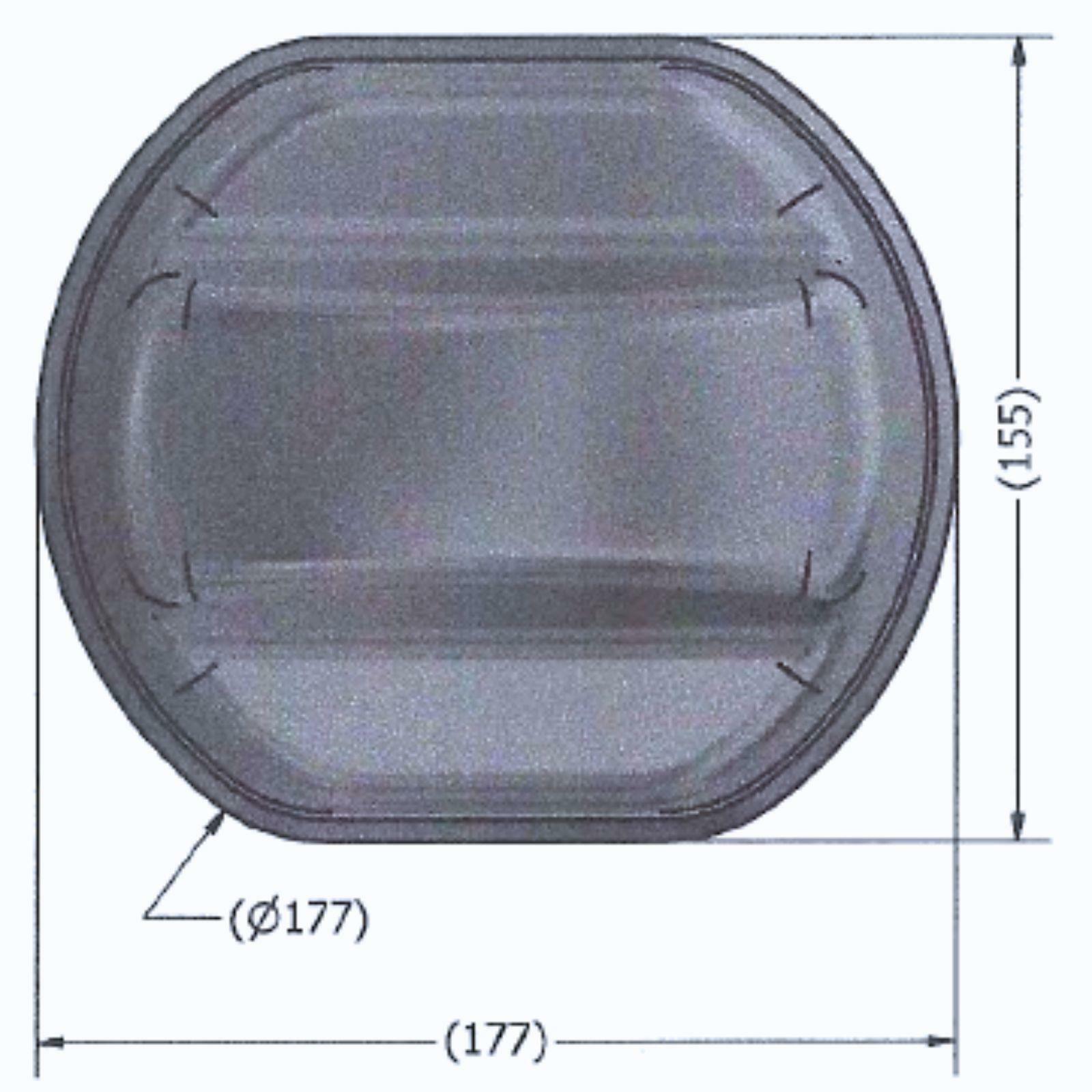

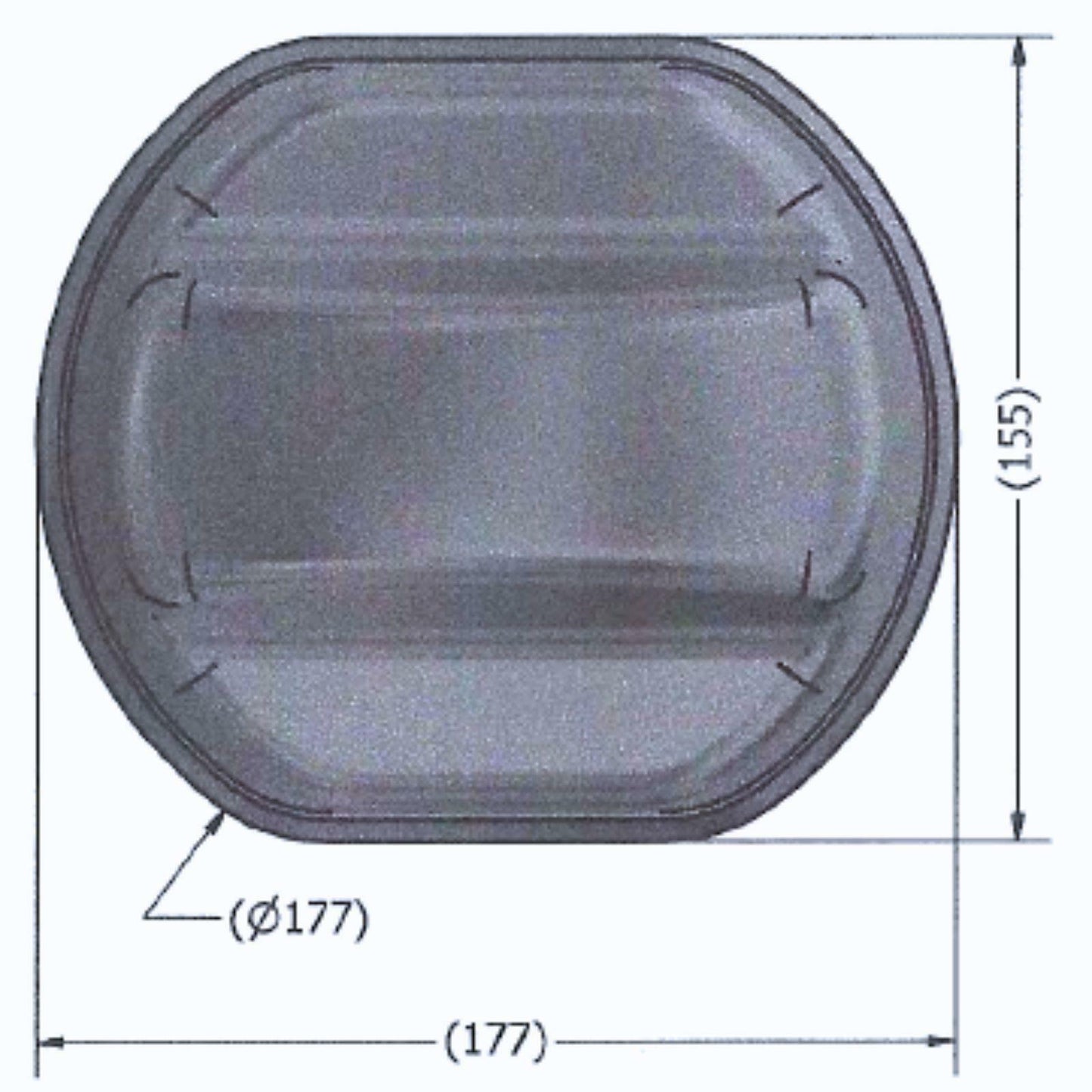

| Dimensions (antenna body) | 177 mm × 155 mm (approx.) |
| Weight (shipping) | ~5 lbs |
| Protocol Support | LTE / 5G NR FR1 / Wi-Fi / GNSS |
| Compatible Routers | Cisco Catalyst IR1800 series (IR1821, IR1831, IR1833, IR1835), Cisco IR829, and other Cisco industrial routers |
Where This Antenna Performs Best
This antenna was built for situations where multiple wireless connections need to run at the same time from a single mounting point. Here are the main scenarios where it shines:
Industrial and Remote Edge Sites Smart city nodes, remote infrastructure, and IoT deployments benefit from consolidating cellular, Wi-Fi, and GPS into one hardened outdoor unit rather than managing several separate installs.
Transit and Fleet Vehicles Buses, trains, and emergency vehicles can run cellular data, passenger/crew Wi-Fi, and live GPS tracking all from one rooftop unit. No more juggling multiple antennas across the vehicle exterior.
Public Safety and First Responder Units Police, fire, and EMS vehicles get reliable 5G/LTE communication plus continuous location services without sacrificing roof space or signal quality.
Railway and Rail Car Installations This antenna carries EN 50155 and AAR certifications, meaning it meets the strict vibration, temperature, and environmental standards required for actual locomotive and rail car use.
Cisco IR1800 Series Router Builds If you are running a Cisco Catalyst IR1821, IR1831, IR1833, or IR1835 rugged router, this is one of the primary antennas Cisco lists for those platforms. It is a direct, supported accessory.
9 Antennas in 1: Here Is What You Can Remove From Your Build
This is where the value really stands out. The 9 internal elements inside this one unit can replace all of the following separate purchases and installs:
- 4 individual 5G Sub-6 GHz / 4G LTE cellular antennas covering low band (617 MHz) all the way through 5G Sub-6 GHz (3.9 GHz)
- 4 individual dual band Wi-Fi antennas covering both 2.4 GHz and 5 GHz simultaneously
- 1 dedicated GPS/GNSS antenna for location tracking and timing services
Beyond the antenna count, you also eliminate the need for multiple roof penetrations, separate mounting hardware for each antenna, and individual weatherproofing on every connector. One stud mount, one clean install. This unit covers all of it.
